Outdoor LED billboards are widely used for advertising along highways, in commercial areas, and on building facades. However, the success of the project not only depends on choosing the right screen size and resolution. The supporting structure must withstand the weight of the display and wind forces, and technicians should have easy access for maintenance.
These are important factors to consider when choosing the type of LED screen, cabinet configuration, and mounting components for the installation. For example, a billboard mounted against a wall requires a different cabinet design and maintenance arrangement than a freestanding billboard supported by a steel structure.
Before you request a price quotation from an outdoor LED billboard supplier, finalize your basic installation requirements. The proposal must fit your technical needs and budget.
| Information Required | What to Provide |
| Screen geometry |
|
| Site and mounting |
|
| Environment |
|
| Electrical and controls |
|
| Service method |
|

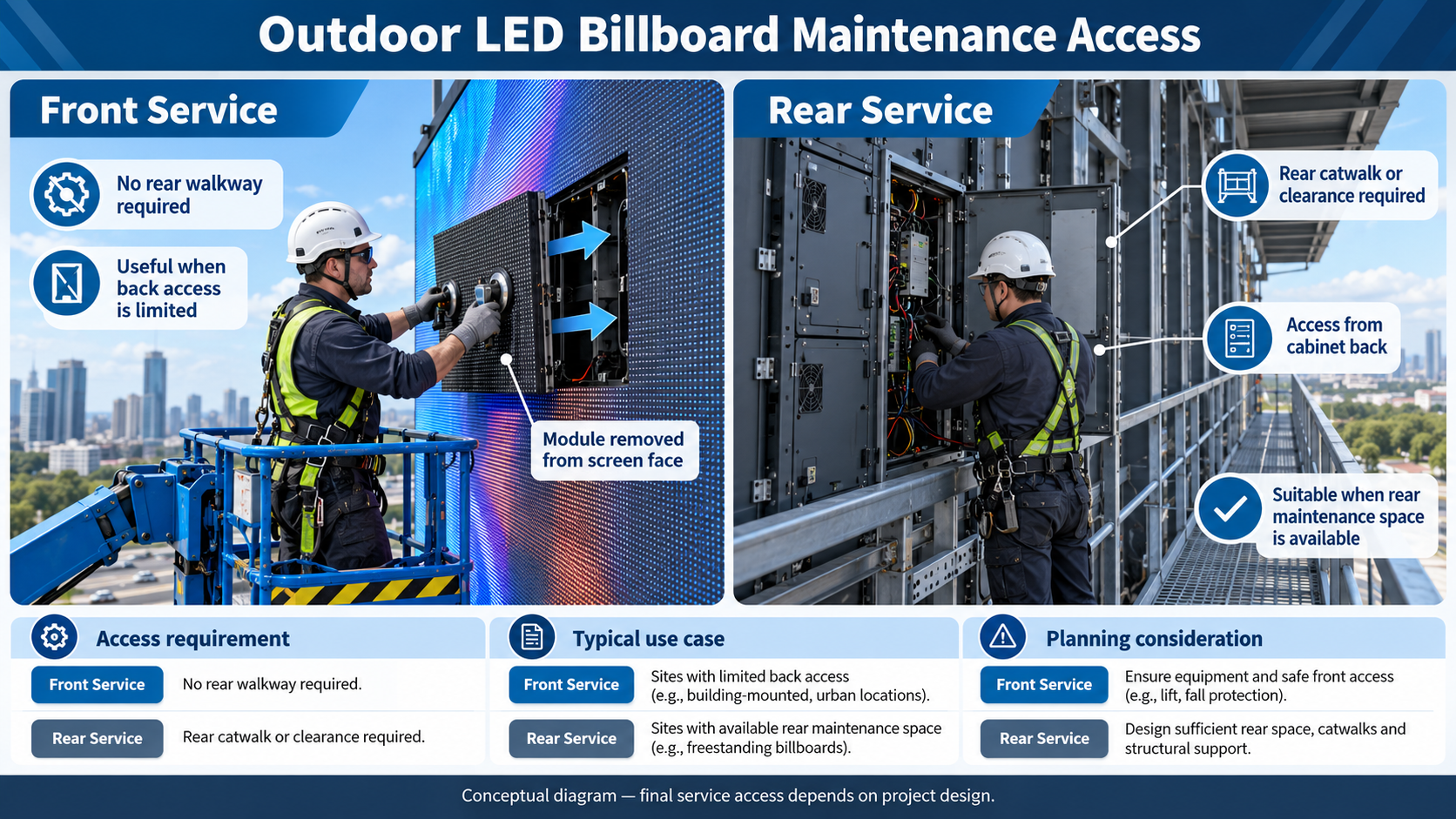

Front Service vs. Rear Service: Which Is Better?
A front-service outdoor LED screen allows technicians to remove components from the display face. Such screens are ideal for billboards that are mounted against walls. Screens allowing rear access for maintenance are ideal for freestanding billboards.
| Factor | Front Service | Rear Service |
| Access | From display face | From back of cabinet |
| Best fit | Restricted rear space | Accessible structure/walkway |
| Planning risk | Safe reach to full display height | Walkway, doors and exit route |
| Confirm | Which parts are truly front-replaceable | Door swing and technician access |
You can also find an outdoor LED advertising screen manufacturer offering screens with both front and rear maintenance access.
Do Suppliers Provide Steel Structure Drawings?
Having interface drawings allows you to coordinate cabinet positions, fixing points, and cable access. Leading manufacturers provide steel structure CAD drawings with advertising LED screen solutions.
These drawings include:
- Cabinet grid dimensions
- Connection locations
- Support spacing
- Attachment details
- Power distribution routes
- Service openings
A layout provided by your outdoor LED billboard supplier is not the final structural design. You must review loads, anchors, existing structure capacity, foundation design, and code compliance.
What Affects Outdoor LED Billboard Structure Loads?
Your billboard needs a supporting structure that not only holds the weight of the screen but also withstands the forces acting on it. One common force is wind.
The weight of the billboard includes LED cabinets, steel mounting frame, cables, and other attached components. For example, the outdoor LED screen panel – DS960 Series weighs 28 kg/m². The estimated cabinet mass of a 6 × 3 m screen (18 m²) will be 504 kg, with the additional weight of the supporting structure and accessories not included.
Wind is another active force that increases exponentially with speed, especially against large displays at elevated positions. Sometimes, pressure due to winds can easily exceed the dead weight of the display itself. Strong winds can even overturn freestanding billboards mounted on poles. Therefore, the foundation of the poles must resist strong winds.
These forces not only affect the steel frame but also brackets, bolts, and anchors connecting the billboard to a building or support structure. Depending on the location and design of the billboard, your engineers may also have to account for the weight of accumulated snow or ice and maintenance personnel or equipment. If you are installing it in Zone IV (High Damage Risk) or Zone V (Very High Damage Risk), then you will have to account for earthquakes as well. Therefore, you need a qualified structural engineer who can determine the required support structure and connections under applicable local building codes.
How Much Space Is Needed Behind an Outdoor LED Screen?
Technicians need space to access internal components for repair or maintenance. They have to open the rear cabinet covers, inspect electrical connections, and replace faulty components such as power supplies or receiving cards. The space must be wide enough for technicians to work safely. Contractors must confirm the recommended clearance before designing the supporting structure.
If the billboard is installed against a wall, then there must be adequate space for safe rear access.
