Outdoor LED Sign

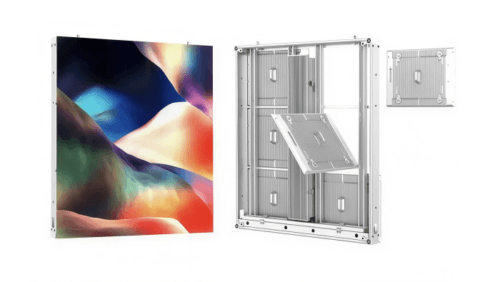

  • Front access cabinet, with hydraulic lever and frame design.
  • Suitable for screen height less than 6 ft and no maintenance space at the back.
  • Can be used in businesses, churches, etc.
  • Different types are available, from P2.5 to P10.
  • Over 5,500 nits brightness.
  • Durable and weather-resistant design for outdoor use.
  • Support various control methods, such as 4G, WIFI, USB, LAN, etc.


No matter for business or church, our outdoor LED sign is the perfect addition.

It is suitable for those projects with less than 6 ft screen height and without service space at the back.

You can maintain it easily from the front.

There are different pixel pitches, including P2.5, P3, P4, P5, P6, P8, and P10.

We can customize different sizes according to your need.

More than 5,500 nits high brightness can ensure your outdoor LED sign board is visible in bright sunlight.

Versatile control methods like 4G, WIFI, and USB can make it easy to manage and operate.


Application EnvironmentOutdoor
Pixel PitchP2.5, P3, P4, P5, P6, P8, P10
Service MethodFront Access
Brightness>5,500 nits
LED Lamp TypeSMD
Life Span100,000 hours
Color Temperature3,500K~8,500K
Gray Scale>16 bits
Refresh RateAdjustable
Installation TypeFixed installation
Cabinet MaterialGalvanized iron
Cabinet Weight50 kg/m2
IP LevelIP65
View Angle120°/70°
Input Voltage110~240 VAC
Operation Temperature-30°C ~ +70°C
Storage Temperature-40°C ~ +80°C
Brightness AdjustmentAutomatic / Manual
Control Method4G / WIFI / USB / LAN
